Select the Type of Fastener Used

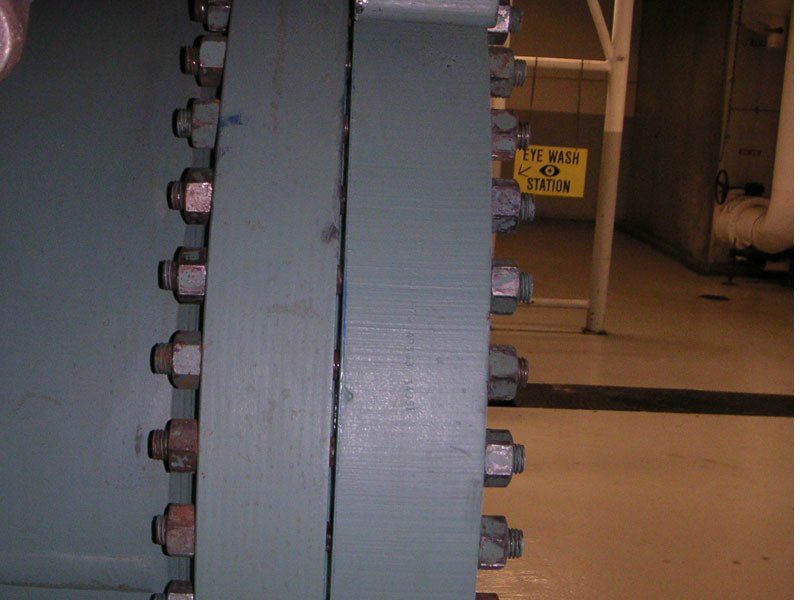

1. Is it a stud
that extends completely through the cover and through the flange with a nut at each end?

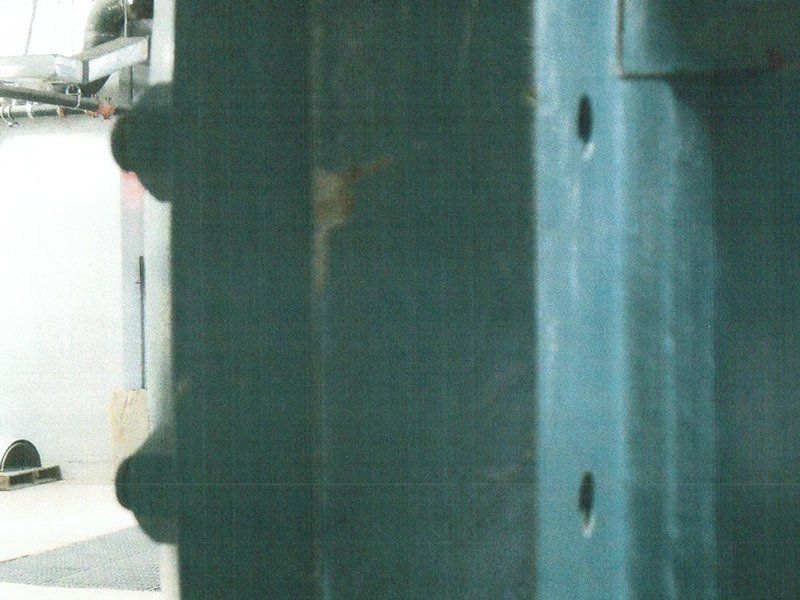

2. Is it a stud that extends completely through the cover and threads into a tapped hole in the flange?

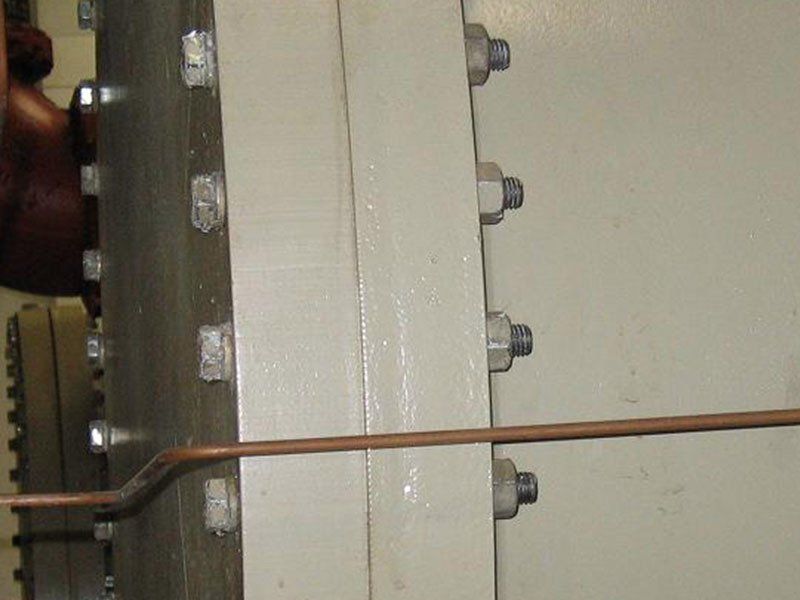

3. Is it a bolt
that extends completely through the cover and through the flange with a nut at the end?

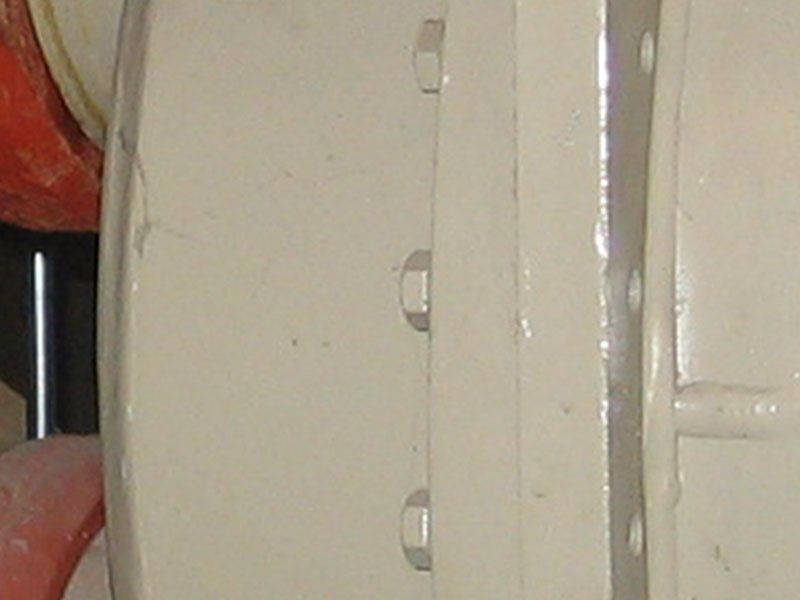

4. Is it a bolt that extends through the cover and into a tapped hole in the flange?

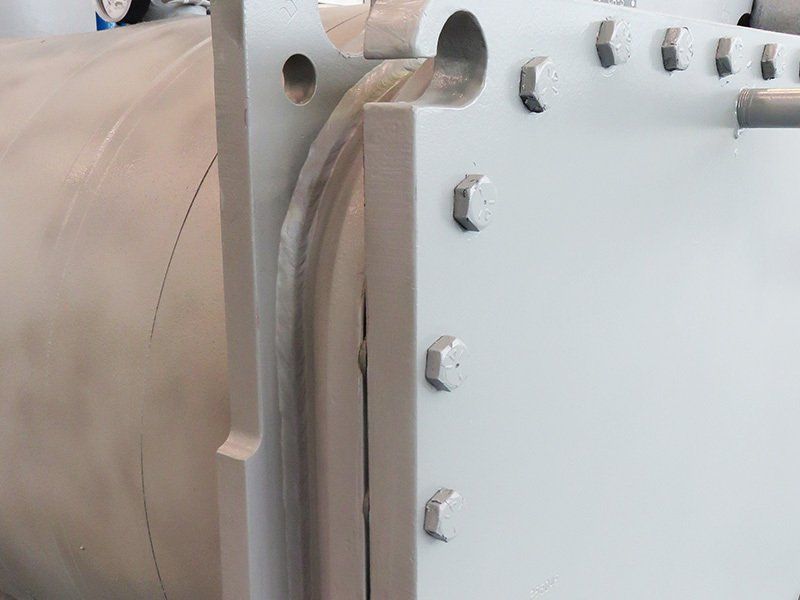

5. Is it a bolt that extends completely through the cover and threads into a blind tapped hole in the flange?
